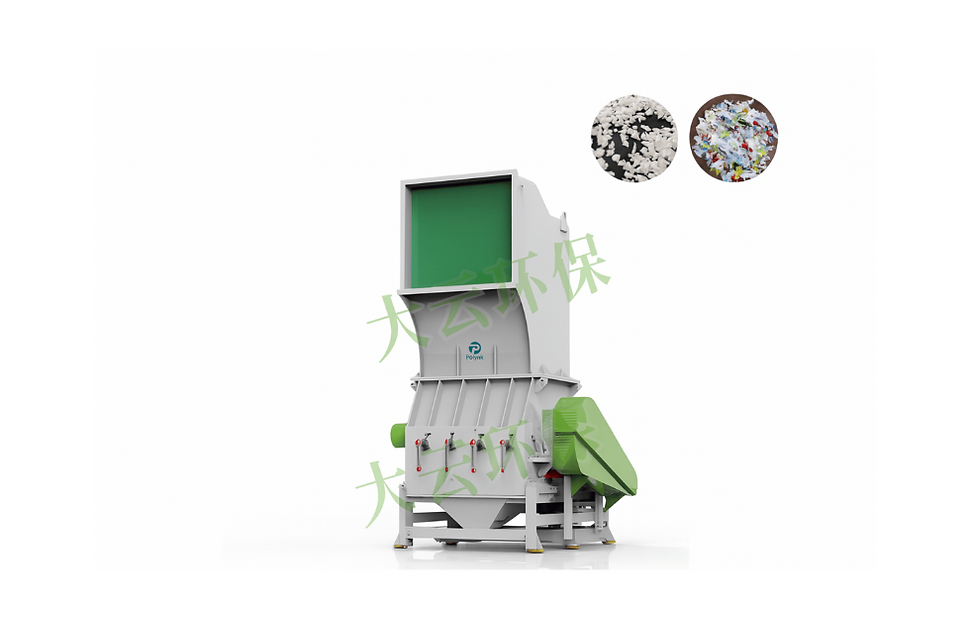

Heavy Recycling Crusher
Product Overview
The Heavy Recycling Crusher, available from Omegapack, is a rugged, industrial-grade crusher designed to tackle high-strength, thick plastic and composite waste. With cutting-edge V-shaped blade technology, a precision-balanced steel shaft, and low-noise operation, this unit is perfect for manufacturers or recyclers dealing with hard-to-break materials.
It efficiently reduces the size of plastic waste materials with thicknesses ranging from 3 to 30 mm, making it ideal for reuse, granulation, or landfill reduction.
Applications
Engineered for the crushing of:
Rigid plastic blocks and sheets
High-thickness engineering plastics
Molded parts and plastic components
Solid plastic waste from automotive, construction, or appliance industries
Industrial offcuts and production scraps
Performance Benefits
Delivers consistent particle size reduction for recycling or granulation
Reduces emissions and operating costs through optimized blade design
Handles difficult-to-break, thick materials without deformation or blockage
Enhances workplace safety and comfort with low-vibration and low-noise design
Built for continuous, high-load operation in industrial environments
Key Benefits and Features
Feature | Description |
Four-Shaft Cutting System | Enables controlled shredding of large and tough materials with minimal jams |
Modular Design | Standardized components ensure easy maintenance and part replacement |
High-Torque Gear Transmission | Intermediate gearing allows for differential speed and consistent torque |
Forged Auxiliary Blades | Offers strength and durability for hard-to-shred materials |
Alloy Steel Main Blades | Specially treated for long life and wear resistance |
Multi-Purpose Application | Handles plastics, paper, textiles, and light metals in a single line |
Process steps
Specifications
MODEL | FEED MOUTH SIZE(MM) | MAIN MOTOR POWER(KW) | MOVING KNIFE QUANTITY(PIS) | FIXED KNIFE QUANTITY(PIS) | ROTOR DIAMETER(MM) | OUTPUT (KG/H) |
DYPS-Z 1000 | 1000*1000 | 55-110 | 10/14 | 4/6 | Φ700 | 800 |
DYPS-Z 1200 | 1200*1000 | 90-132 | 10/14/18 | 4/6 | Φ800 | 1200 |
DYPS-Z 1500 | 1500*1000 | 110-200 | 14/18 | 4/6 | Φ1000 | 2000 |
